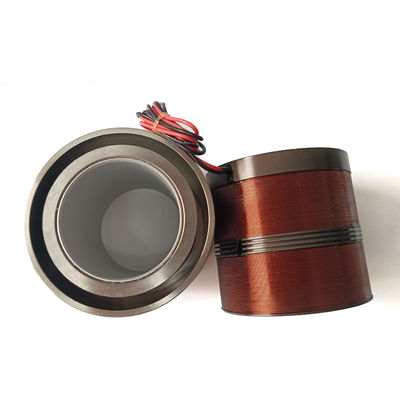

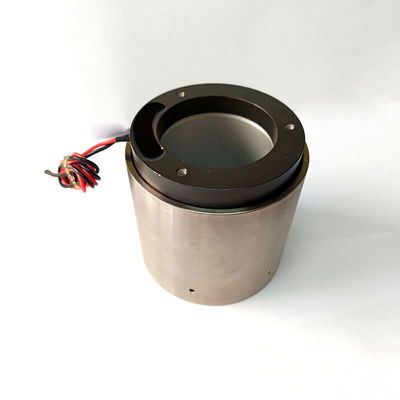

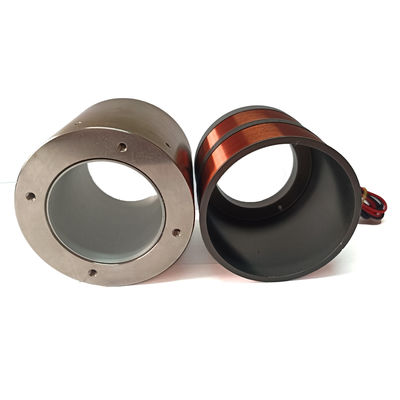

High Acceleration Hollow Core Motor Voice Coil Actuator For Optical Focusing

Product Description:

SUPT motor-hollow core voice motor,VCAD series coil motor,High response, high acceleration, low mass coil.No cogging effect,zero hysteresis. Simple structure, light weight, high frequencysmooth operation,It is widely used in optical scarning, positioning and auto focusing systems.

Through-hole voice coil motors are commonly used in optical focusing for camera autofocus and optical scanning systems.

In cameras, through-hole voice coil motors drive lens movement to achieve focusing. The lens and permanent magnet are fixed to the lens mount, which slides along a guide rod. The guide rod, coil, and Hall sensor are secured to the base. When the coil is energized, it drives the lens up and down for precise focusing.

Through-hole voice coil motors can be employed for focus adjustment in optical scanning systems. Hollow linear voice coil motors, featuring a small aperture that permits the passage of optical components, illumination, laser beams, or cables, enable rapid and precise focus positioning during optical scanning processes.

Features:

Product Name:Hollow Core Motor,Hollow Voice Coil Motor,Through-Hole Voice Coil Actuator

Speed:High Speed

model number:VCAD0120-0200-00A

Product features:Simple structure, lightweight, high-frequency response, high acceleration, high precision, and relatively high manufacturing difficulty.

Usage: BOAT, UAV, 3D Printing, Microscope, Robot,positioning, and autofocus systems

Efficiency: IE 1

Parameters:

Applications:

SUPT's VCAD series through-hole voice coil motors feature a simple structure, lightweight design, high-frequency response, and high acceleration. They are suitable for applications in optical scanning, positioning, and autofocus systems.
