6.2N High Dynamics Voice Coil Motor For Active Vibration Cancellation

  • 6.2N High Dynamics Voice Coil Motor For Active Vibration Cancellation
  • 6.2N High Dynamics Voice Coil Motor For Active Vibration Cancellation
  • 6.2N High Dynamics Voice Coil Motor For Active Vibration Cancellation
Место происхождения Цзянсу, Китай
Фирменное наименование SUPT
Сертификация ISO9001
Номер модели VCAR0006-0050-00A
Количество мин заказа ≥5
Цена $160.00/pieces
Упаковывая детали Картонная упаковка и т.д.
Время доставки Общая доставка 5-7 дней, быстрая доставка 3-5 дней, оптом можно договориться
Условия оплаты Т/Т
Поставка способности Возможен торг
Подробная информация о продукте
Гарантия 3 месяца-1 год тип Микромотор
Крутящий момент Просьбы Строительство Постоянный магнит
Модель продукта VCAR0006-0050-00A Защитить функцию Полностью закрытый
Скорость (оборотная часть) Высокоскоростной Пиковая сила ((N) 6.2
Максимальная пробежка ((мм) 5 двигатель переменного тока ((V) 15,7
Масса ротора ((kg) 8.2 Dia статора (mm) 25
Постоянная сила ((N) 2.6
Выделить

6.2N high dynamics voice coil motor

,

voice coil motor for vibration cancellation

,

VCM motor with active vibration control
Оставьте сообщение
Характер продукции





Product Description

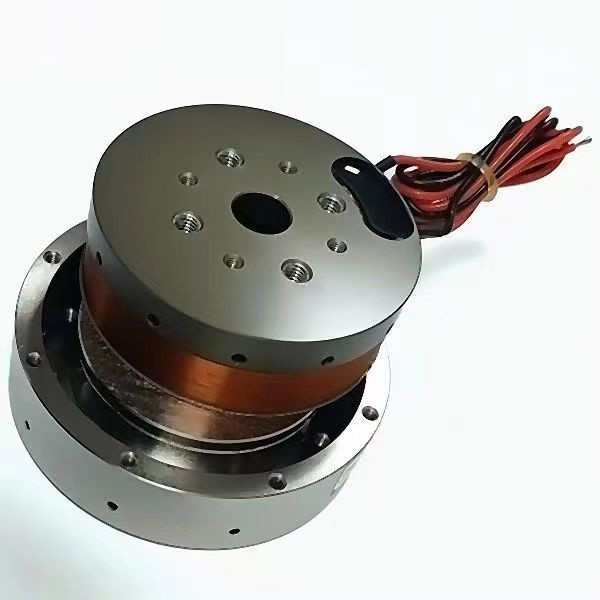

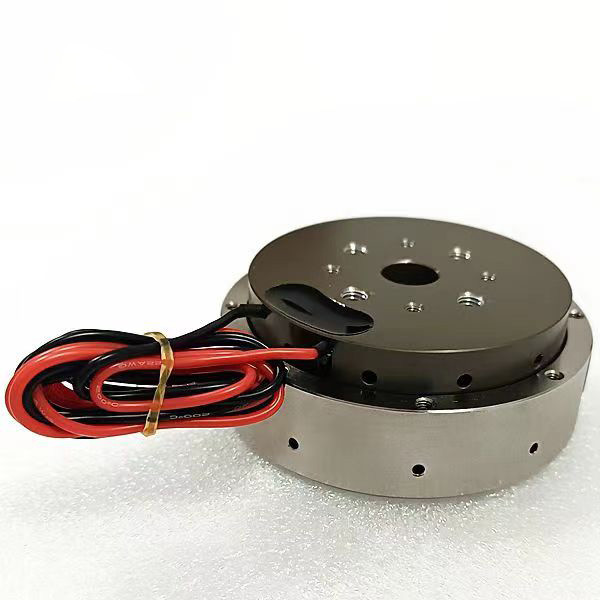

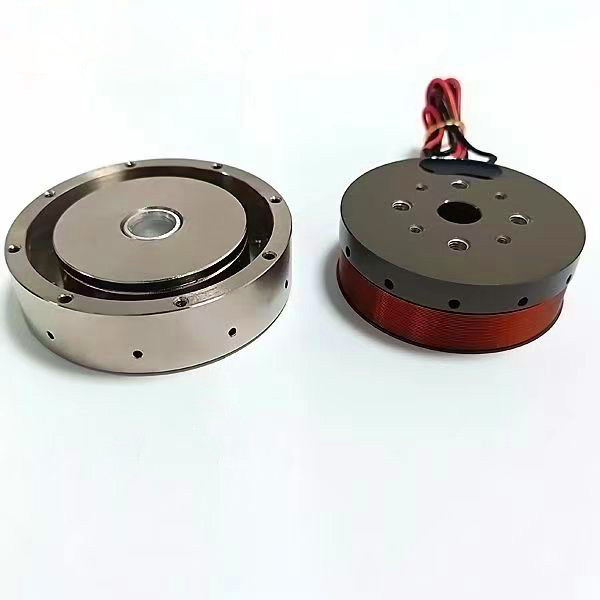

The SUPT MOTION VCAR0006-0050-00A is a high-dynamic cylindrical voice coil motor that delivers a peak thrust of 6.2 N over a 5 mm stroke. Designed specifically for active vibration isolation systems, this voice coil motor generates a counterforce to eliminate low-frequency disturbances in precision instruments, optical stages, and semiconductor metrology equipment.

This actuator delivers a continuous thrust of 2.6 N at 25°C, with a back-EMF constant of 3.57 V/m/s and excellent thrust-current linearity. Weighing only 8.2 g, the moving coil enables rapid acceleration, thereby achieving real-time vibration suppression. With a maximum operating voltage of 15.7 V, it integrates seamlessly with standard servo amplifiers.

Active vibration cancellation (AVC) systems require actuators with fast response times and predictable force output. Traditional piezoelectric actuators have limited stroke, while pneumatic isolators lack bandwidth. The VCAR0006-0050-00A motor bridges this gap with a 5 mm stroke and millisecond-level response times, effectively canceling vibrations caused by floor movement, fans, or nearby mechanical equipment.

This voice-coil motor is also suitable for high-speed tool servo systems in precision machining, where small, rapid Z-axis movements improve surface finish. In optical focus tracking, the 5-millimeter stroke enables continuous autofocus adjustment without mechanical backlash. Its cylindrical profile (25-millimeter diameter) simplifies integration with existing vibration isolation systems.

With a more compact design, higher reliability, and lower maintenance costs, this voice coil motor is widely applicable in industrial inspection cameras, machine vision systems, visual positioning for product sorting, and industrial imaging measurement instruments, providing efficient, stable, and precise autofocus solutions for the industrial automation sector.





Specifications:

Peak Force: 6.2 N

Continuous Force @25℃: 2.6 N

Total Stroke: 5 mm

Max Voltage: 15.7 V

Back EMF Constant: 3.57 V/m/s

Coil Weight: 8.2 g

Stator Diameter: 25 mm

Length: 18.2 mm



Technical Parameters:



Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72
VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3
VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8
VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110 143.7



Applications:

1.Active vibration isolation tables



2.Optical table disturbance rejection



3.Fast tool servo (FTS)



4.Autofocus tracking



5.Metrology equipment stabilization
